12" F/5 Reflector


Art No. : GS930-12" F/5 Newtonian

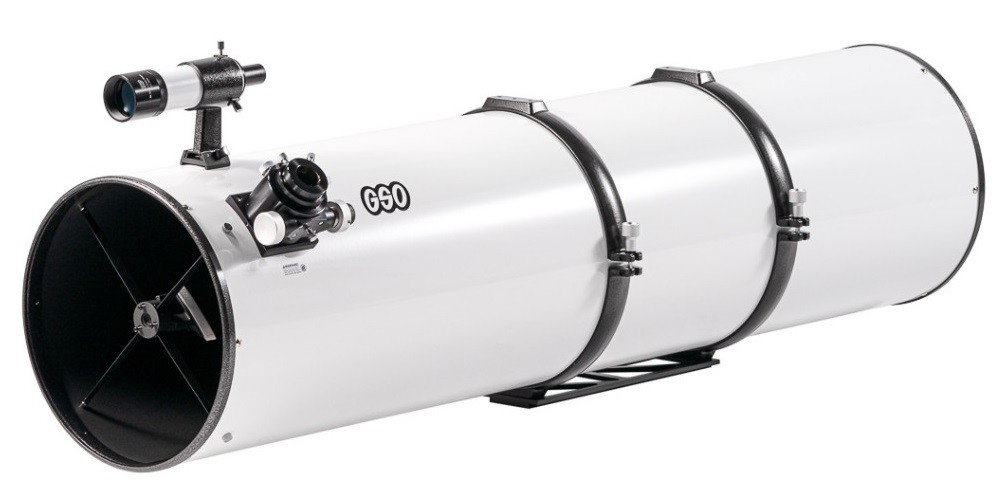

This 12" f/5 Newtonian optical tube assembly will produce a wide field view for imaging or for visual observations in deep space. The OTA comes with a 2" Micro 10:1 Crayford-style focuser with 1.25" eyepiece adapter, also could be install upgrade Linear bearing camera connect focuser EAF compatible. Standard accessories include a 8x50 finder with bracket, dust cover to keep the optics clean during storage.


Specification:

* 12" Parabolic primary mirror

* Focal length: 1520mm, F/5

* 70mm secondary mirror

* Enhanced aluminum coating 94% reflectivity

* 2" Micro 10: 1 Crayford style focuser w/1.25" adapter

* 9 points mirror cell w/12V cooling fan


Standard accessories:

* 8x 50mm fully multi-coated achromatic Finder

* 356mm Tube rings

* D type dovetail plate

* 35mm extension tube 2"
